G24DA40 Pilot Solenoid Valve Kobelco SK100 SK120 YN35V00020F1

product details:

• Solenoid valve structure: (coil, magnet, ejector)

When the coil is connected to the current, the magnetism is generated, and the magnet attracts each other, and the magnet will pull the ejector rod. When the power is turned off, the magnet and the ejector rod are reset, so that the solenoid valve completes the work process

• Principle of pilot solenoid valve:

When the power is turned on, the electromagnetic force opens the pilot hole, the pressure in the upper chamber drops rapidly, and a pressure difference between upper and lower sides is formed around the closing element. The fluid pressure pushes the closing element to move upward, and the valve opens; when the power is turned off, the spring force closes the pilot hole. , the inlet pressure quickly forms a pressure difference around the valve closing member through the bypass hole, and the fluid pressure pushes the closing member to move down to close the valve.
Features: The upper limit of the fluid pressure range is high, which can be installed arbitrarily (need to be customized) but must meet the fluid pressure differential conditions.


​In order to improve the working reliability and life of the electromagnetic directional valve: Wet electromagnet is used, which does not need to be sealed between the electromagnet and the spool valve push rod, which eliminates the friction at the O-ring seal. Plastic encapsulation, no metal shell is used, which not only ensures insulation, but also facilitates heat dissipation, so it works reliably, with low impact and long life.

• As of today, we offer a wide range of solenoid valves:

1. Hydraulic pump proportional solenoid valve
2. Rotary Solenoid Valve
3. Pilot solenoid valve
4. lock solenoid valve
5. High pressure oil pump SCU solenoid valve
6. Main pump solenoid valve
7. High-speed solenoid valve
8. Distributor solenoid valve
9. Solenoid valve group
10. EGR solenoid valve assembly


Other models of excavators related solenoid valve models:

Shipping/Warehouse:




We offer accessories from the following brands:

Why Choose Us:

1.We are Manufacturers specializing in the production of sensors.

2.Quality and delivery under control.

3.Quick response within 24 hours.

4.Small order allowed.

5.Original packing, neutral packing or customized packing.

6.Our price is very competitive compared with other suppliers'.

7.If you only can supply the part No. No problem, just send the part no. to me, I will give you the right product. We have a good system about part No.

8.More than 10 years of professional manufacture experience.

Note:We are a professional manufacturer of electrical components.
Each of our parts will be tested more than 10 times from the factory to the sale to check whether the parts are normal, and then provided to customers, to ensure that we provide you with the best quality and assured products

G24DA40 Pilot Solenoid Valve

Kobelco Pilot Solenoid Valve

YN35V00020F1

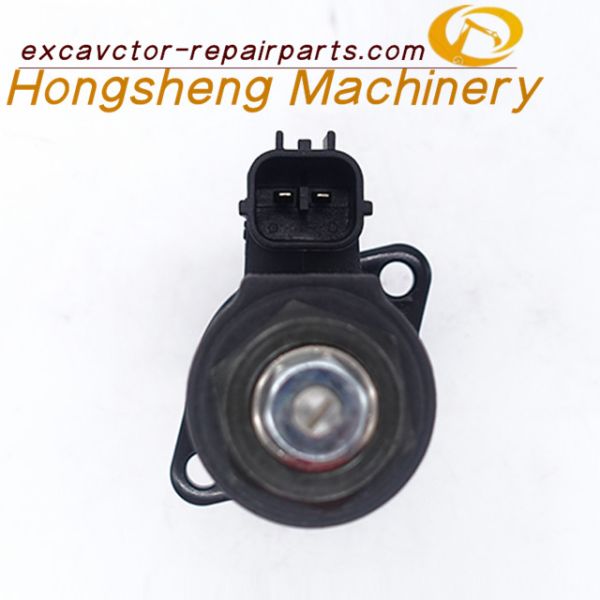

G24DA40 Pilot Solenoid Valve Kobelco SK100 SK120 YN35V00020F1 Images
